Here is an Axon MultiClamp 700A Amplifier PatchClamp w/ CV-7A Headstage Pred 700B

We so far sold over 10 of these setups to various universities that were successfully able to use them. Let us know if you have any questions.

The amplifier two headstages are fitted with an SMA-BNC adapters to allow for connection of a BNC electrode. The idea to do this came from a Research Investigator from the University of Michigan. He purchased two of these units from us and is using them as stand alone amplifiers. For both voltage and current testing. He also uses lexan plate to provide isolation of the head stage from the manipulators. These headstages mount without an adapter directly to Narishige manipulators (MNM-21).

Below are the difference to the current Multiclamp 700B amplifier.

Second scaled output with signal conditioning
USB communication replaces the previous RS-232
Support for (optional) bilayer headstage
User-defined control sensitivity (Fine, Medium, Coarse)
Improved current clamp holding and offset resolution
Support for two (optioal) voltage-following headstages
Adjustable MultiClamp Commander window size with scrollbars

Let us know if you have any other questions as we have exprience with these units.

Predecessor to:
MultiClamp 700B

This Axon MultiClamp 700A Amplifier is in good working order.

Please see the exact photos below.

Testing we performed:
The Axon MultiClamp 700A Amplifier passed all tests and was found to be fully functional:
Graph shows a recorded spike test of 66 passes at a peak average of 57 pA
The amplifier was put through the function checkout test as described on page 6 of the manual and passed
The amplifier passed all initialization tests during testing.

System consists of:
Axon MultiClamp 700A Amplifier PatchClamp
CV-7A Headstage
USB to serial adapter for computer communication.
SMA to BNC Headstage to Electrode adapters
Dell Latitude i5 running Windows 7 Pro running MultiClamp Commander software
Communication and power cables.

Datasheet: N/A

Brochure: N/A


Please do not hesitate to contact us if you have any questions.

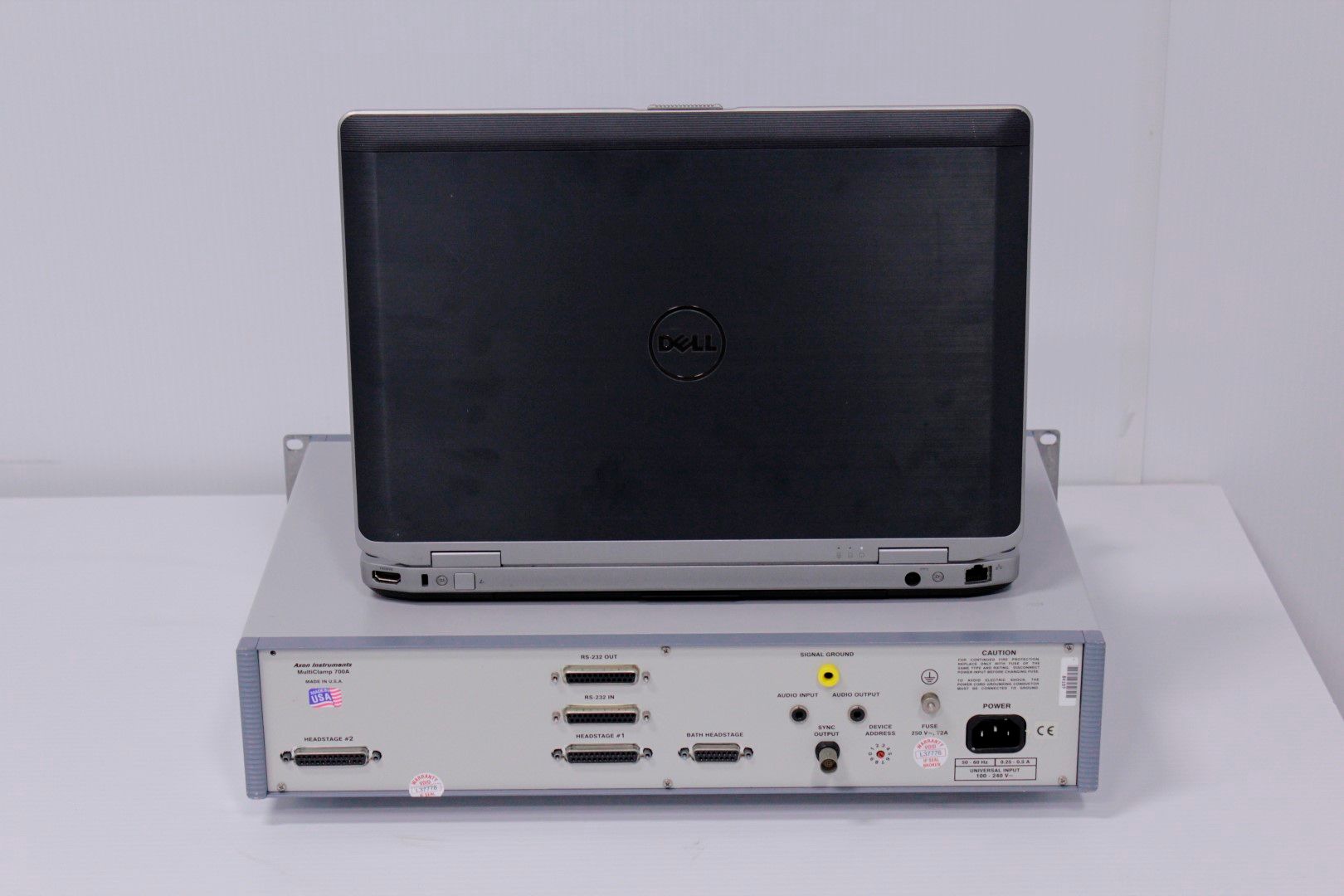

 photo 14202- 1.jpg  photo 14202- 2.jpg  photo 14202- 3.jpg  photo 14202- 4.jpg  photo 14202- 5.jpg  photo 14202- 6.jpg  photo 14202- 7.jpg  photo 14202- 8.jpg  photo 14202- 10.jpg  photo 14202- 11.jpg  photo 14202- 13.jpg  photo 14202- 14.jpg  photo 14202- 16.jpg  photo 14202- 17.jpg
